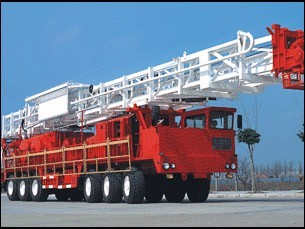

XJ160 Workover Rig


Liao Liaohe Drilling Engineering Co.,Ltd.http://www.lhdc.com.cn/Release Time: 2012-06-14 09:06:07

 1. Introduction

The Model XJ160 is a self-propelled workover rig powered by a single engine of the largest class, with a maximum static hook load of 1470kN. It is mainly used for overhauling, workover, formation testing, fishing and pump inspection operations in deep wells in onshore oilfields, which can be used for sidetracking and middle-shallow well drilling.





2. Main Technical Parameters

⑴Model

XJ160

Note

⑵Workover DepthNominal Workover Depth

27/8″EUE Tubing 8500m

27/8″DP

7000m

Nominal Overhaul Depth

Nominal Drilling Depth

⑶Max. Hook Load

1580kN

⑷Installed Power

630HP(467kW)/2100r/min

⑸Height of Madt

35m

⑹Travelling SystemEffective Numbers of Rope

10

Diameter of Lifting Wire Rope

Hook Lifting Speed

0.21.5m/s

⑺Rotary Table Drift Diameter

φ520mm(201/2")

⑻Swivel Central Tube Drift Diameter

φ76mm

⑼Drill Floor Height

6m
