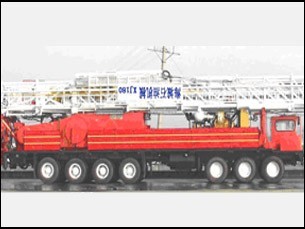

XJ180 Workover Rig


Liao Liaohe Drilling Engineering Co.,Ltd.http://www.lhdc.com.cn/Release Time: 2012-06-14 09:04:16

1. Introduction

The Model XJ180 adopts a large self-propelled workover equipment with dual engine parallel structure, with a maximum static hook load of 1700kN, which is mainly used for deep well overhaul, workover, formation testing, fishing and pump inspection in onshore oilfield, for drilling medium and shallow wells within 3,000 meters.





2.Main Technical Parameters

Model

XJ180

Note

Overhaul Depth 2 7/8″DPmft

800026247

    (3 1/2″DPmft

650021326

    (4 1/2″DPmft

500016404

Nominal Hook Load

 kNlb

1500337200

Max. Hook Load

kNlb

1800404656

Diameter of Drilling Line mmin./Effective Numbers of Drilling Line   n

φ291.13/8

Max Hoisting Speed of Hookm/sft/s

1.364.462

Transportation Dimension (L×W×H)Includes Mastmft

21.25×3.3×4.4769.72×10.83×14.67

Weight

kglb

70000154323





Model

XJ180

Note

Overhaul Depth 2 7/8″DPmft

800026247

    (3 1/2″DPmft

650021326

    (4 1/2″DPmft

500016404

Nominal Hook Load

 kNlb

1500337200

Max. Hook Load

kNlb

1800404656

Diameter of Drilling Line mmin./Effective Numbers of Drilling Line   n

φ291.13/8

Max Hoisting Speed of Hookm/sft/s

1.364.462

Transportation Dimension (L×W×H)Includes Mastmft

21.25×3.3×4.4769.72×10.83×14.67

Weight

kglb

70000154323
