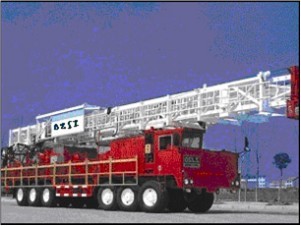

ZJ20/1470CZ Drilling Rigs


Liao Liaohe Drilling Engineering Co.,Ltd.http://www.lhdc.com.cn/Release Time: 2012-06-14 09:45:52

1. Structure and Application

The Model ZJ20 RIG is suitable for drilling medium and shallow wells within 2000 meters. It is convenient to move and install the whole machine, and has reliable operation performance.



2.Main Technical Parameters

Model

ZJ20/1470CZ

Note

Drilling Depth4 1/2"DPmft

20006560

Overhauling Depth3 1/2"DPmft

550018045

Max. Hook Load kNlb

1470330700

Diameter of Drilling Line

mmin./Effective Numbers of Drilling Line

φ291-1/8"/8

Max Hoisting Speed of Hookm/sft/s

1.314.3

Transportation Dimension (L×W×H)Includes Mastmft

20.13×3.2×4.466×10.5×14.44

Weight

kglb

56000123456



Model

ZJ20/1470CZ

Note

Drilling Depth4 1/2"DPmft

20006560

Overhauling Depth3 1/2"DPmft

550018045

Max. Hook Load kNlb

1470330700

Diameter of Drilling Line

mmin./Effective Numbers of Drilling Line

φ291-1/8"/8

Max Hoisting Speed of Hookm/sft/s

1.314.3

Transportation Dimension (L×W×H)Includes Mastmft

20.13×3.2×4.466×10.5×14.44

Weight

kglb

56000123456
