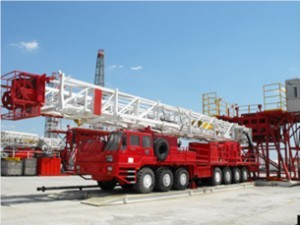

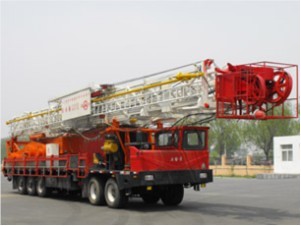

Truck-Mounted Drilling Rig Series

Liao Liaohe Drilling Engineering Co.,Ltd.http://www.lhdc.com.cn/Release Time: 2012-06-14 09:36:52

1.Structure and Application

The power, drawworks, derricks, traveling system and transmission mechanism of the rig are all loaded on the self-propelled chassis, which has great advantages in improving the efficiency of drilling operations relocation. Our company has 1,000 meters, 1,500 meters, 2,000 meters, 3,000 meters and the world’s largest class of 4,000 meters deep drilling rigs, the maximum static load from 1125 to 2250 Kn, with a large operating load, reliable performance, strong cross-country ability, easy to move, and so on, which is suitable for middle shallow well drilling, and can be used in Alpine, desert, Plateau and other areas.





2.Main Technical Parameters



Model

ZJ10/900CZ

ZJ15/1125CZ

ZJ20/1580CZ

ZJ30/1700CZ

ZJ40/2250CZ

Drilling Depth: m (4 1/2″DP)

1000

1500

2000

3000

4000

Overhauling Depth: m (3 1/2″DP)

3200

4500

5500

6500

7000

Max. Hook Load (kN)

900

1125

1580

1800

2250

Hook Speed

0.2-1.4

Derrick Height (m)

29

32

35

36/38

36/38

Derrick Style

Mast

Mast

Mast

Mast or Erective

Mast or Erective

Type of Engine

CAT3406

or

C-9 ATAAC

CAT3408DITA

or

C-15 ATAAC

CAT3412 DITA

or

C-16 ATAAC

2*CAT3408 DITA

or

2*C-15 ATAAC

2*CAT3408 DITA

or

2*C-15 ATAAC

Engine Power (kW)

269 or261

354

485 or492

2*354

2*396 or 2*392

Hydraulic Transmission Box

S5600HR

S5600HR

S6610HR

2*S56HR

2*S56HR

Transmission Type

Hydraulic+Mechnical

Travelling System

3×4

4×5

4×5

4×5/5*6

5×6

Diameter of Drilling Line (mm)

Φ26

Φ26

φ29

φ32

φ32

Type of Hook Block

YG90

YG110

YG160

YG180

YG225

Type of Swivel

SL110

SL135

SL160

SL225

SL225

Type of Rotary Table

ZP175

ZP175

ZP175

ZP205/ZP275

ZP205/ZP275

Type of Chassis

XD40/8×6

XD50/10×8

XD60/12×8

XD70/14×8

XD70/14×8

Approach/Departure Angle

26°/18°

Min. Ground Clearance (mm)

311

Max. Climbing Gradient

30%

26%

26%

26%

26%

Min. Turning Diameter (mm)

28

30

38

41

41

Transportation Dimension (m)

16.7×2.8×4.2

18.8×2.85×4.3

20.5×2.85×4.45

22.3×3×4.45

22.3×3×4.48

Main-unit Weight (Kg)

42000

50000

58000

76000

78000

Weight of Accessories (Kg)

15000

20000

24000

32000

34000
